How to Automatically Remove Items and Values in APEX URLs

A while ago I wrote about how to pass multi-select lists through the URL: http://apex-smb.blogspot.com/2009/07/apex-how-to-pass-multiselect-list.html. This method works, however it will only support up to 4000 characters as a result of the functions it uses.

What happens when a user selects more than 4000 characters? You could update the processes to handle clobs etc. I took a different approach when faced with this problem. Instead of trying to update the process to handle clobs I asked: Why am I passing the values through the URL? Wouldn't it be easier if I didn't pass values through the URL?

When I first thought about this, I thought I could run a process on each page that would set the appropriate variables to the calling page. But then developers would have to look in the page branch and page processes to see what items were being passed to which pages. This sounded confusing and goes against the APEX framework. I really don't like having developers do extra work when they don't need to or go against standards already put in place.

I took a different approach to this problem. Instead of having a special page process to pass values from one page to another I was able to "intercept" the page branch and modify it before it was executed. I did this by taking the page branch and manually setting the item/value pairs, then removing them from the page branch. Here's an example of the final solution: http://apex.oracle.com/pls/otn/f?p=20195:2800.

Here are some screen shots from the demo application:

Page Branch configuration:

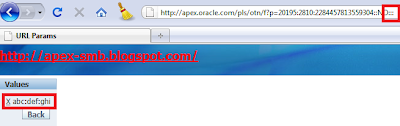

Passing in values via the URL (note that I'd like "X" to be "abc:def", however it's just abc)


Running the page process to manually remove the item/value pairs from the URL:


Before reviewing the code, it's important to note the following assumptions. I made these assumptions to make the code demo easier to read.

- Only 1 branch is defined on the page with no conditions etc.
- The branch only contains at most 1 clear cache
- The branch passes as most 1 item/value pair to the other page

- Create page process: Remove URL Params
- Branch Point: On Submit After Processing

Note: You could easily turn this into an application process to be run throughout your application

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

-- NOTE: For the purpose of this example I'm assuming the following: --   Only 1 branch is defined with no conditions etc. --   The branch only contains at most 1 clear cache --   The branch passes as most 1 item/value pair to the other page   DECLARE    v_branch_action   apex_application_page_branches.branch_action%TYPE;    p_app_id          apex_application_page_branches.application_id%TYPE := :app_id;    p_page_id         apex_application_page_branches.page_id%TYPE := :app_page_id;    v_clear_cache     NUMBER;    v_item_names      VARCHAR2 (4000);    v_item_values     VARCHAR2 (4000); BEGIN    -- Get branch action    -- The branch action is the URL before it is parsed by APEX    SELECT branch_action      INTO v_branch_action      FROM apex_application_page_branches     WHERE application_id = p_app_id AND page_id = p_page_id;      -- Get the clear cache options    v_clear_cache :=       SUBSTR (v_branch_action,               INSTR (v_branch_action, ':', 1, 5) + 1,                 INSTR (v_branch_action, ':', 1, 6)               - INSTR (v_branch_action, ':', 1, 5)               - 1              );      -- Manually clear the cache if required    IF v_clear_cache IS NOT NULL    THEN       apex_util.clear_page_cache (p_page_id => v_clear_cache);    END IF;      -- Get Page Param values    v_item_names :=       SUBSTR (v_branch_action,               INSTR (v_branch_action, ':', 1, 6) + 1,                 INSTR (v_branch_action, ':', 1, 7)               - INSTR (v_branch_action, ':', 1, 6)               - 1              );    v_item_values :=       SUBSTR (v_branch_action,               INSTR (v_branch_action, ':', 1, 7) + 1,                 INSTR (v_branch_action, '&success_msg=', 1, 1)               - INSTR (v_branch_action, ':', 1, 7)               - 1              );      -- If item/value pairs exist, manually set the values    IF v_item_names IS NOT NULL    THEN       -- See: http://apex-smb.blogspot.com/2009/07/apexapplicationdosubstitutions.html for more info on apex_application.do_substitutions       apex_util.set_session_state            (p_name       => v_item_names,             p_value      => apex_application.do_substitutions (TRIM (v_item_values))            );    END IF;      -- Modify the branch action    -- Remove the clear cache option if applicable    IF v_clear_cache IS NOT NULL    THEN       v_branch_action :=             SUBSTR (v_branch_action, 1, INSTR (v_branch_action, ':', 1, 5))          || SUBSTR (v_branch_action, INSTR (v_branch_action, ':', 1, 6));    END IF;      -- Remove the item name/value pairs if applicable    IF v_item_names IS NOT NULL    THEN       -- Remove item Names       v_branch_action :=             SUBSTR (v_branch_action, 1, INSTR (v_branch_action, ':', 1, 6))          || SUBSTR (v_branch_action, INSTR (v_branch_action, ':', 1, 7));       -- Remove item values       v_branch_action :=             SUBSTR (v_branch_action, 1, INSTR (v_branch_action, ':', 1, 7))          || SUBSTR (v_branch_action,                     INSTR (v_branch_action, '&success_msg=', 1, 1)                    );    END IF;      -- Set the new branch action    apex_application.g_branch_action (1) := v_branch_action; END;
